Freedom Yurt-Cabins partnered with Renogy to offer the 48V 50Ah Lithium Iron Phosphate Battery w/ Bluetooth!
Description

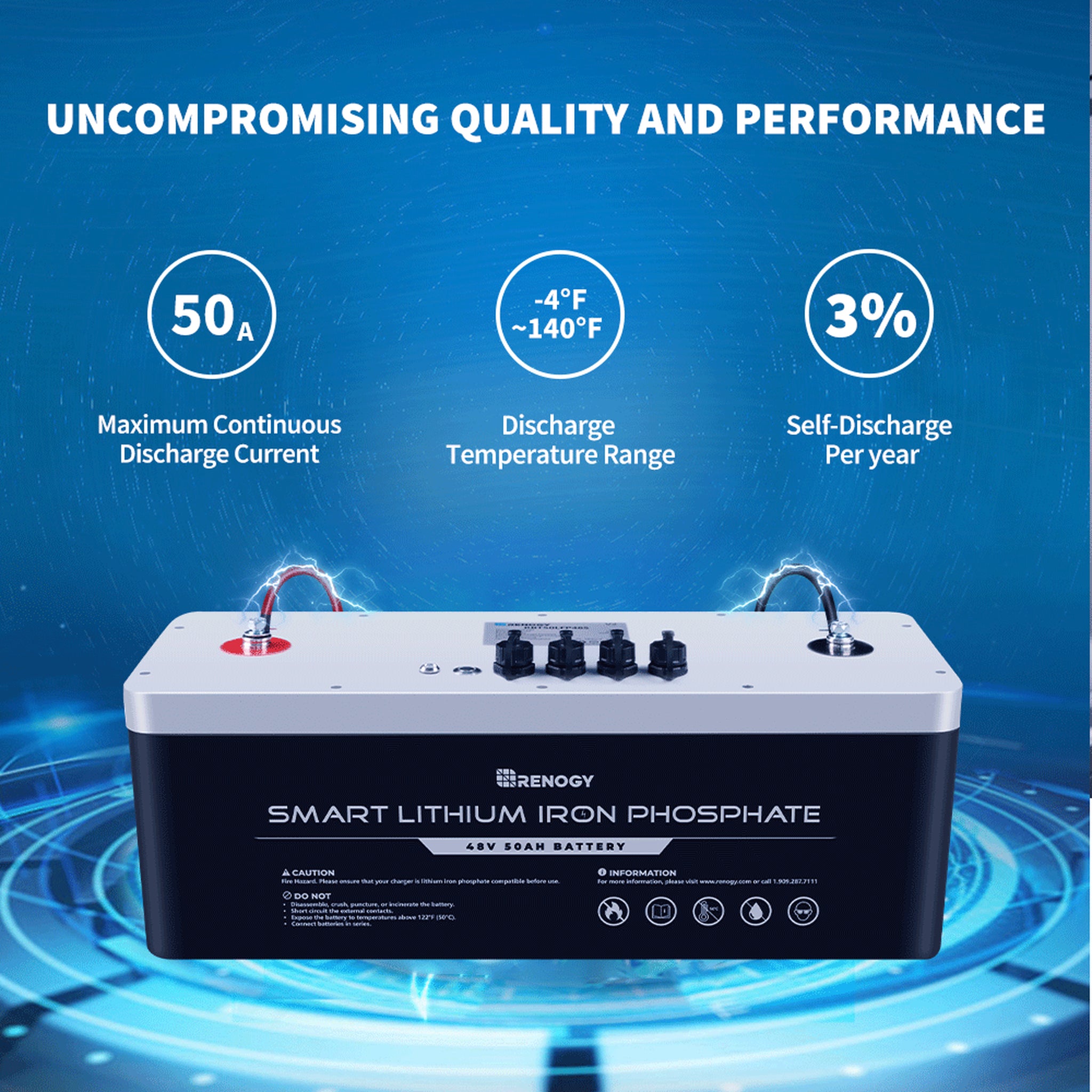

【Uncompromising Quality】 Renogy’s latest 48V battery delivers a breakthrough in quality by offering an exceptional lifespan of more than 4500 cycles (reducing to 80% capacity after 4500 cycles), a 50A maximum discharge current, and most importantly, an extensive five year warranty.
【Self-Heating Function】 The intelligent self-heating function will start operating automatically once the battery’s core temperature drops below 41°F (5°C), effortlessly keeping your battery charged in cold environments.
【Reliable BMS System】 The upgraded battery management system (BMS) with high performance dual-processors provide load fluctuation resistance while maintaining balanced voltage across all cells.
【Low Temperature Protection Function】 The lithium battery has low temperature charging and discharging protection function. When the temperature is below 0℃, it will stop charging. When the temperature is below -20℃, it will stop discharging.
【Auto-balancing Function】 Easily connect multiple batteries in parallel with the auto-balancing function to improve the average charging efficiency of your batteries over extended use.
【Real-time monitor】 Featuring advanced RS485 communication ports—your batteries will be able to communicate with each other, external devices and host computers allowing you to monitor the charging status in real-time. (A BT-2 Bluetooth Module or Monitoring Screen is needed).
PACKAGE INCLUDES
|
48V 50Ah Smart Lithium Iron Phosphate Battery
1 x |
Description
The latest 48V Renogy Lithium Iron Phosphate Battery is taking the smart batteries to the next level. With built-in intelligent self-heating, you can keep your battery charged in cold environments effortlessly. The 48V nominal voltage ensures more than 4500 life cycle, low heat generation and high efficiency during high power transmission. The modular design easily scales to meet a range of configurations—making it improve the average charging efficiency for your batteries in the long term. The state-of-the-art battery management system (BMS) enables comprehensive protection features and real-time monitoring.
With the highest safety standards and five years of prorated warranty, your Renogy battery is the smart point for the future of your amazing off-grid living experience.

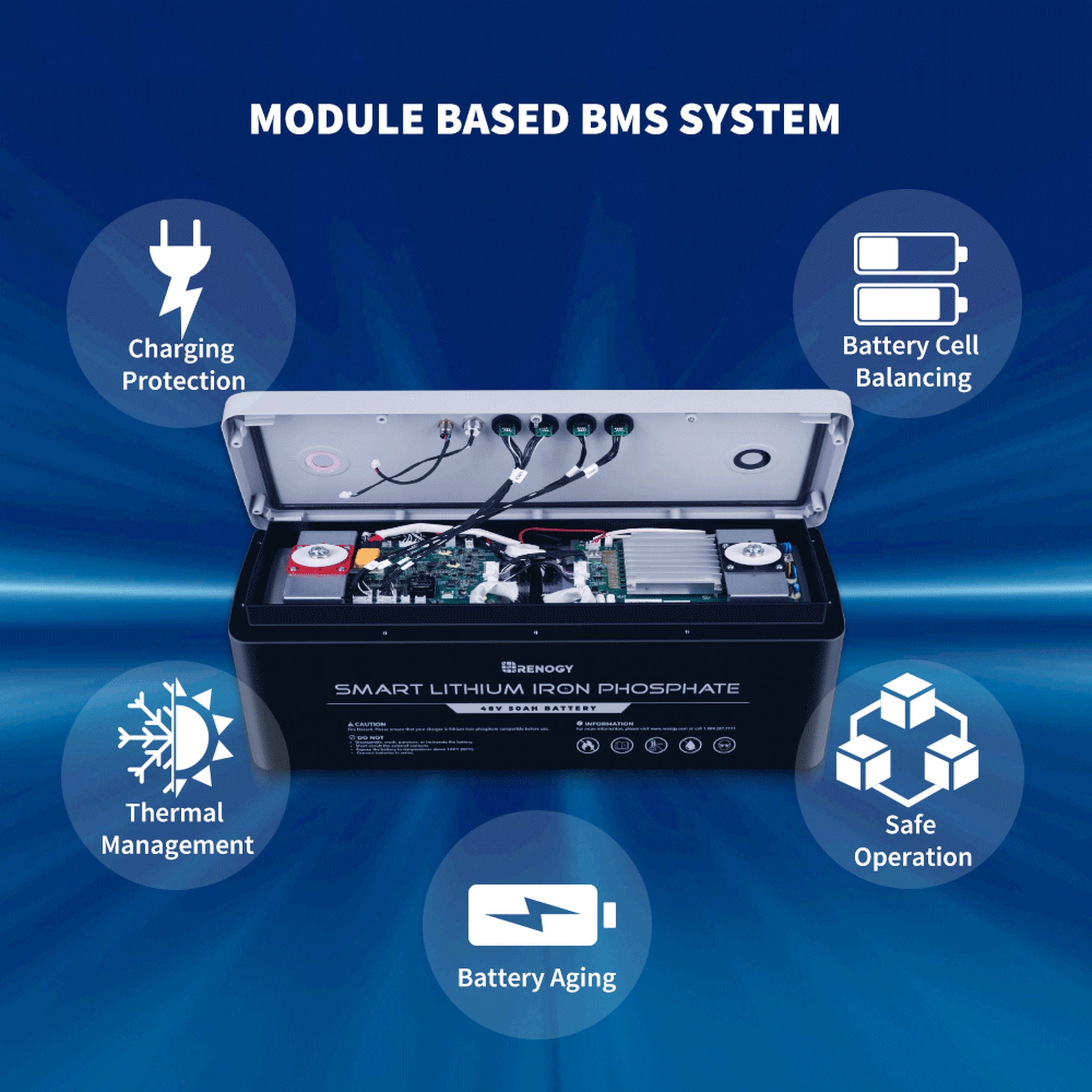

Remarkable BMS
With a single cell temperature measurement discrepancy of ±1℃ and voltage measurement discrepancy of ≤5mV, the new Renogy 48V LiFePO4 is our most reliable battery yet. Powered by an upgraded intelligent BMS circuit, the Renogy 48V LiFePO4 battery is resistant to load and temperature fluctuations.
Auto-Balancing Function
After extended use, the battery’s chemical composition will start to deteriorate, and the over-voltage protection function will be triggered more often, stopping it from fully charging. However, the latest Renogy auto-balancing function ensures that all internal battery pouches charge consistently, improving your battery’s charging efficiency and extending its service life.
Superior Quality
This battery has smashed the free drop test，ElectroMagnetic Compatibility testing, forced overcharge/discharge test，and crash test. With more than 4,500 cycles, a minimum 10 year life span, it's everything a quality battery should be.
Charge anytime, anywhere

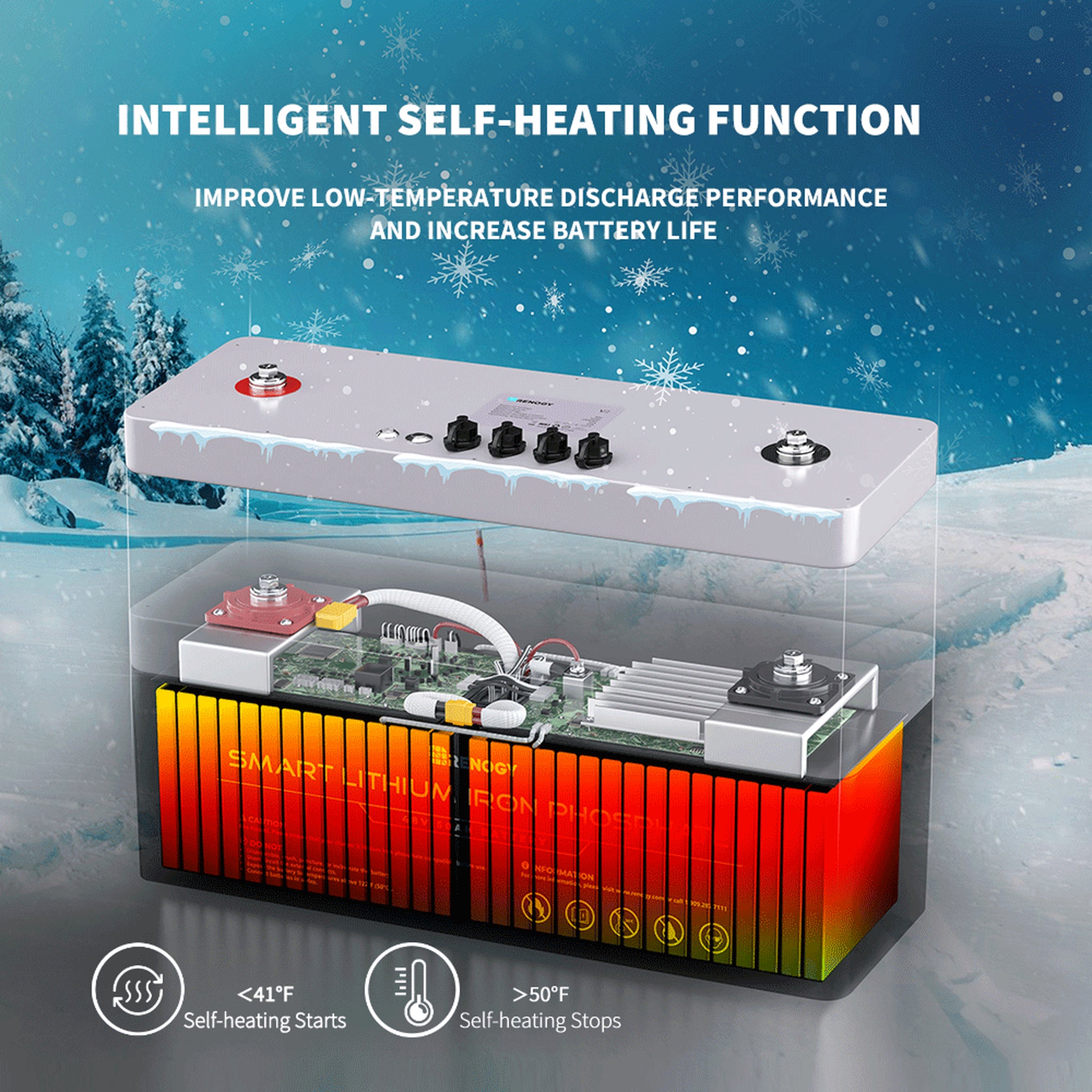

Meet our revolutionary self-heating function. This technology allows you to charge your batteries in cold environments effortlessly. When connected to an input, the self-heating function will start operating automatically once the battery temperature drops below 41°F(5°C).
Built-in Activation Switch
Say goodbye to the old external switch connector. With a built-in switch button, activating and de-activiting the battery can all be done with one touch. This will minimise the battery's internal power consumption. Not to mention, you can avoid electrical sparks when installing your solar system by being able to control the de-activation process yourself.
Real-time Monitoring
With the improved RS485 UP Communication Port, your batteries will be able to communicate and transfer data in real time. Using a Renogy Bluetooth Module BT2 export the data into comprehensible information streamed straight to your cell phone, or watch it live with a Renogy monitoring screen.
NOTE
- The normal operation of the self-heating function requires a stable charge current greater than 3A
- Please secure all cable connections to the proper specification in order to ensure good contact between the cable lugs and the terminals. Over-tightening cable connections can cause terminal breakage and loose cable connections can cause terminal meltdown or fire.
- DO NOT string the battery in series. ONLY connect batteries of the same manufacturer and model in parallel.
- Please avoid too high a voltage difference between paralleled batteries, despite the auto-balancing function, to avoid triggering the over-current protection.
If you have any questions regarding this product, please call us at 1 (909) 287-7111 or email support@renogy.com.
| SPECIFICATIONS | |
|---|---|
| Cell Type: LiFePO4 | Rated Capacity (0.2C):50Ah |
| Cycle Life (0.2C, 25℃):4500 Cycles (80% DOD) | Nominal Voltage: 48V |
| Connection Method:Parallel | Voltage Range: 42V~55.5V |
| Communication Port: RJ45 (RS485 Protocol, CAN protocol) | Maximum Charge/Discharge Current: 50A |
| Dimension: 22.7 x 8.46 x 7.87 inch / 576 x 215 x 200 mm |
Charge Voltage:54V |
| Weight:60.8 lb. / 27.6 kg | Charge Temperature Range:32℉~131℉ / 0℃~55℃ |
| Discharge Temperature Range:-4℉~140℉ / -20℃~60℃ | Storage Temperature Range:-13℉~149℉ / -25℃~65℃ |
| Protection Rating:IP55 |
WARRANTY INFORMATION
| Accessories | 5-year prorated warranty |
