PACKAGE INCLUDES
|
Renogy BT-2 Bluetooth module
1 x |
| RENOGY BT-2 BLUETOOTH MODULE (RCM-BT2) | |||
|---|---|---|---|
| Compatibility | Operation Specifications | ||
| Compatible Battery Charger | RCC10RVRB RCC20RVRE RCC40RVRE RNG-CTRL-RVR60 | Communication Protocol | RS485 |
| Compatible Inverter | R-INVT-PGH1-20111S RIV4835CSH1S | Port Type | RJ45 |
| Compatible Smart Lithium Batteries | RBT100LFP12S RBT100LFP12SH RBT50LFP48S RBT100LFP12-BT RBT200LFP12-BT | Input Voltage | 5V or 12V |
| Compatible Battery Charger | RBC30D1S RBC50D1S | Protection Grade | IP54 |
| Compatible App | Renogy DC Home App available in both the App Store and Google Play | Standby Power Consumption | 0.04W |
| Mechanical Specifications | Operating Power Consumption | 0.05W | |
| Communication Range | ≤82ft (25m) | Serial Baud Rate | Fixed Baud Rate 9600bps |
| Cable Length | 16.4 ft (5.00m ) | Certifications | |
| Dimensions | 2.65 X 1.38 X 0.55 in (67.3 X 35 X 14 mm) | FCC Class B Part 15 Compliant | YES |
| Weight | 4.58oz (130g ) | Warranty | |
| Operation Temperature | -4°F to 185°F ('-20℃~85℃) | Material and workmanship warranty | 1 Year |

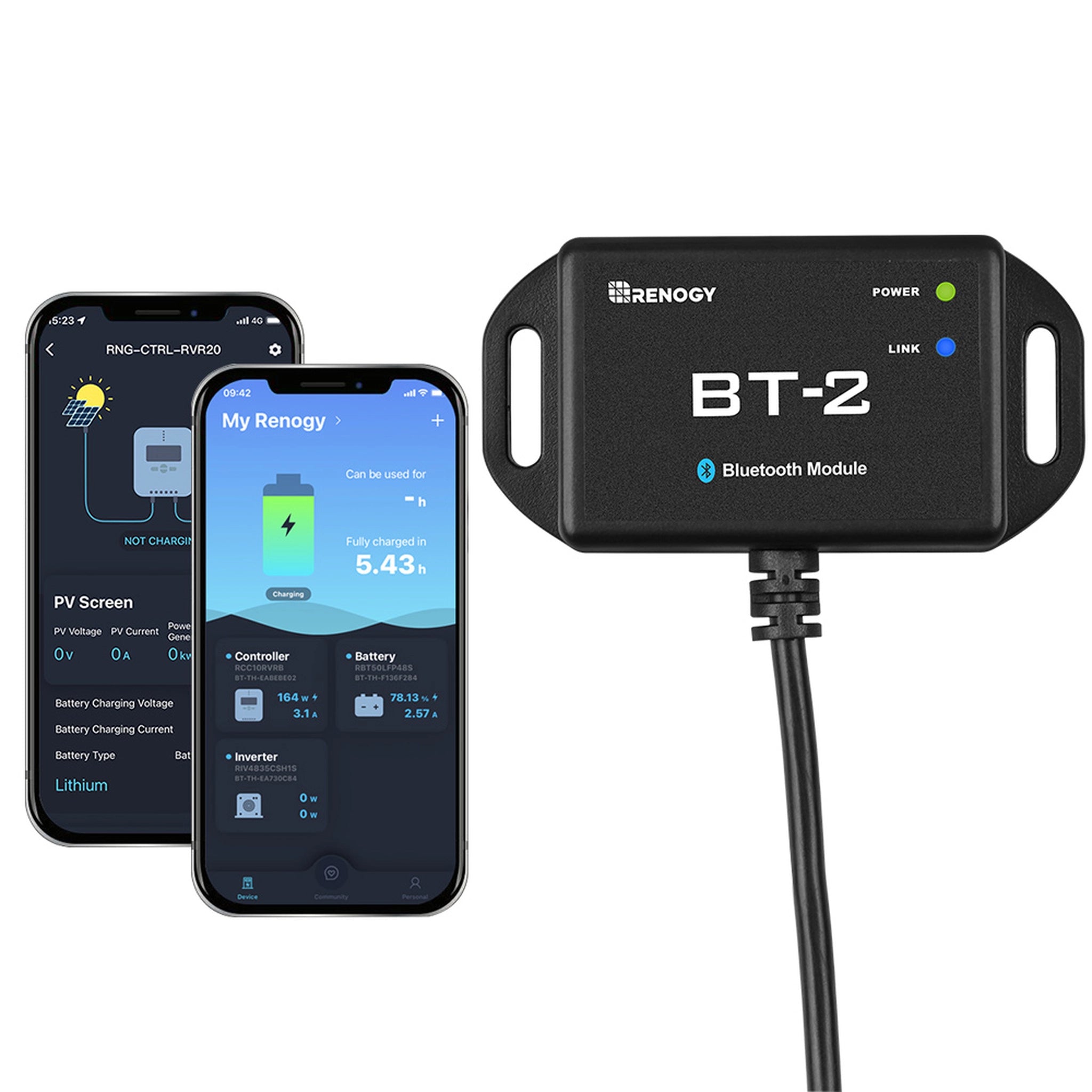

The Renogy BT-2 is the new generation Bluetooth module for select Renogy solar charge controllers, DC-DC battery chargers, smart lithium batteries, and inverters. Powered by its RJ45 communication port, the BT-2 provides wireless monitoring of the system data and allows users to change parameters through the Renogy DC Home smartphone App. The Renogy DC Home App can help make your off-grid power system smarter by giving you access to configure, monitor, update, and diagnose your Renogy products from the convenience of your smart phone or tablet.
DOWNLOAD LINKS
Wirelessly monitor and adjust compatible Renogy RS485 communication port devices. Fully control the solar power generation, energy storage, and inverters' real-time operation data.
Get real-time and historical data via Bluetooth Module and Renogy DC Home App. Bluetooth 4.2 and BLE technology provides fast and uninterrupted communication.
For immersive and active learning, Renogy DC Home App includes Renogy Community and Learning Center, a resource of easy-to-follow tutorial videos and answers to frequently asked questions so that you can become experienced solar DIY experts.
If you have any questions regarding this product, please call us at 1 (909) 287-7111 or or submit a ticket for troubleshooting assistance.
More questions about your off-grid power system? Learn more from Renogy Learning Center!
